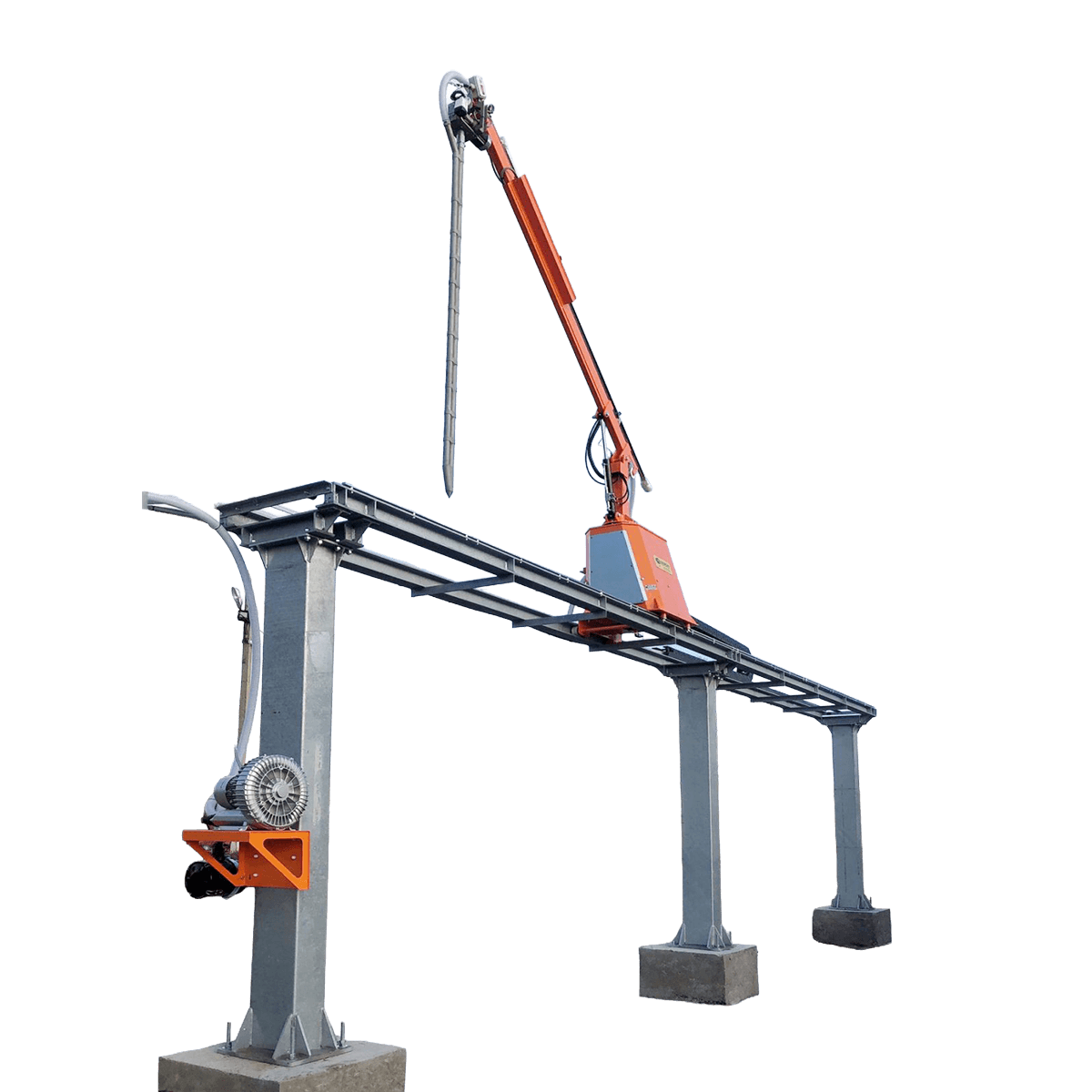

Grain sampler on monorail Borghi SPR

International group of companies PromInvestSercice is the official representative of Borghi s.r.l. (Italy).

The automatic sampler is an indispensable equipment for elevators and grain processing enterprises.

With this equipment you can get a sample for analysis in the laboratory. Sampling is quick and does not affect product properties.

The product is transported to the laboratory with a pneumatic unit.

The sampler can be equipped with a camera for remote control of the sampling process.

TECHNICAL INFORMATION AND SCOPE OF SUPPLY OF THE SPR MODEL

  • The radius of sampling is 4.42 meters
  • Equipped with telescopic arm
  • 3 legs included as standard
  • The distance between legs is 5.1 meters
  • Inside the leg there is a hydraulic unit for controlling the sampler
  • Cable layer along the entire rail
  • Distance from the sampler to the laboratory – 10 m (as standard)
  • Ability to increase the transport distance to 100 m
  • Rotation angle of 340 degrees, which makes it possible to work with two reception lines
  • 3 types of probes (aspiration, double aspiration and screw)
  • Fan for product transportation
  • The capacity of cyclone is 60 liters
  • Auto-return to the parking position after sampling is completed
  • Voltage 400V, protection class IP55
  • Electric control panel
  • Low temperature oil (option)
  • Camera (optional)

The following options are also available: wireless remote control, remote control with a built-in display and camera, extension of transport hoses and cables, etc.
