Borghi SP Automatic Grain Sampler

Order a specialist consultation Order a presentation

The international group of companies “PromInvestService” is the official representative of Borghi S.p.A. (Italy) — a European manufacturer of high-tech equipment for the agricultural and grain-processing sector. Borghi equipment is successfully operated at grain elevators, storage facilities, and processing plants.



Purpose and Application

The Borghi SP automatic sampler is designed for accurate and representative sampling of:

  • grain crops;
  • oilseeds (sunflower, rapeseed, soybean);
  • legumes and other bulk materials;
  • processed products (meal, cake).

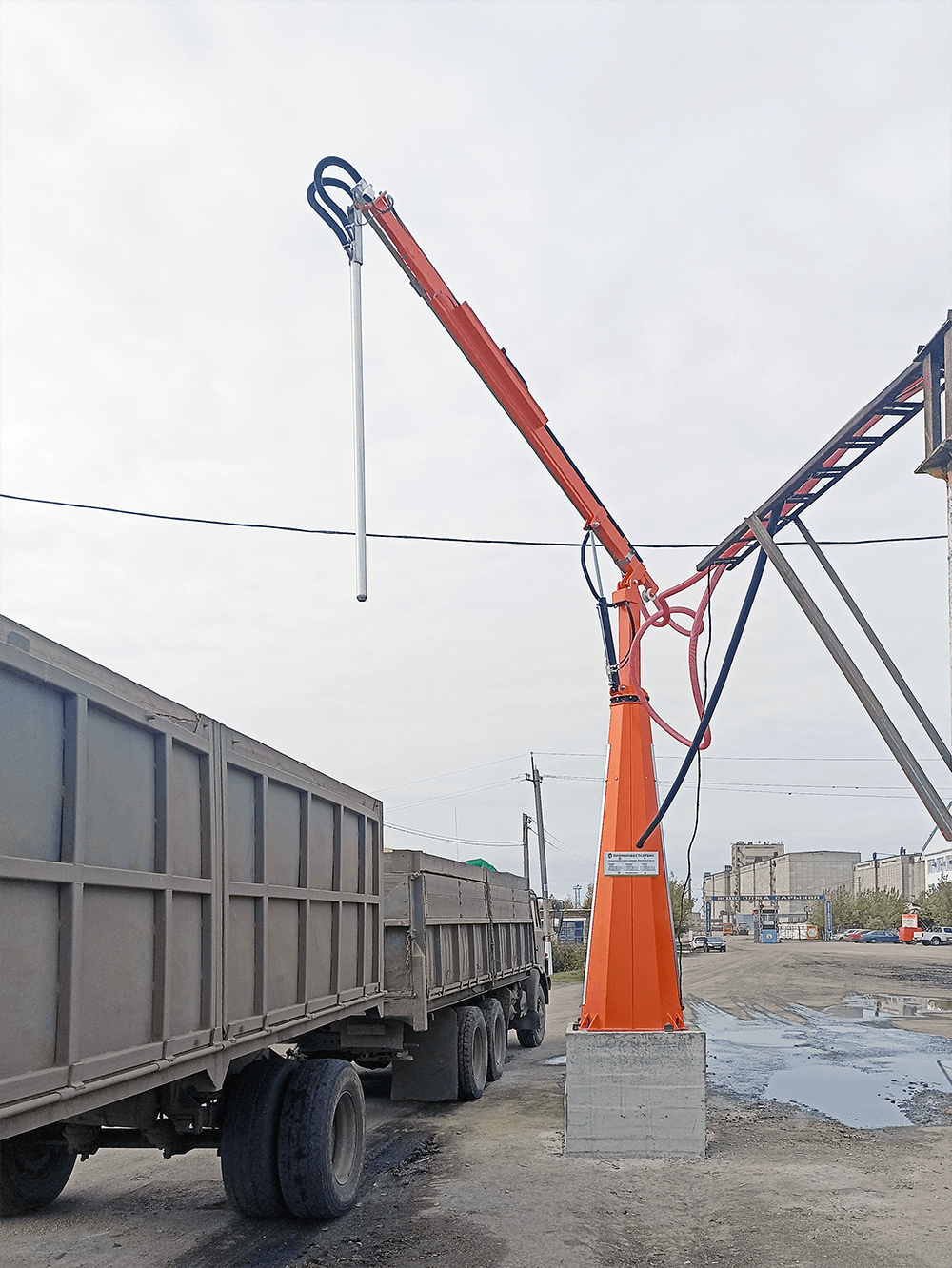

Sampling is performed from trucks, railway wagons, silos, and receiving hoppers. The equipment ensures fast and objective quality control without altering the physical properties of the product.

Automation and Sample Transportation

The collected sample is automatically transported to the laboratory via a pneumatic conveying system, eliminating manual handling and reducing human-factor influence. The process is fully automated and suitable for high-capacity grain intake lines.



Advantages of the Borghi SP Automatic Sampler

  1. High Sampling Accuracy
    Uniform material collection along the entire probe length guarantees reliable laboratory analysis results.
  2. High Operating Speed
    Sampling from any point of a truck body or railway wagon takes only a few seconds.
  3. Safe and Convenient Operation
    An electric control panel and remote control option improve operator safety. A video camera with display output is available as an option.
  4. Robust Design
    The sampler is made of wear-resistant materials, resistant to dust, moisture, and temperature fluctuations.



Technical Specifications of Borghi SP

  • Sampling radius — 4.42 m
  • Telescopic boom
  • Support column with hydraulic control unit
  • Standard conveying distance — up to 10 m
  • Extended conveying distance — up to 100 m
  • Rotation angle — 340°
  • 3 probe types: aspiration, core, auger
  • Pneumatic conveying turbine
  • Product cyclone — 60 L capacity
  • Automatic return to home position
  • Power supply — 400 V
  • Protection class — IP55
  • Electrical control cabinet



Options and Additional Features

  • Low-temperature hydraulic oil (for cold climate operation)
  • Video camera
  • Wireless remote control
  • Control panel with integrated display and camera
  • Extended conveying hoses and cables
  • Customized configuration according to plant requirements
  • Efficiency with Oilseeds

The Borghi SP automatic sampler demonstrates high efficiency when handling high-density oilseeds. The precise sampling system preserves material structure and ensures consistent analysis quality, making the equipment an optimal solution for oil extraction plants and agro-processing facilities.



FOUR SAMPLING PROBE OPTIONS — YOUR CHOICE

Depending on the grain type, conveying system, and quality control requirements, four sampling probe options are available, allowing the sampler to be precisely adapted to any production conditions.

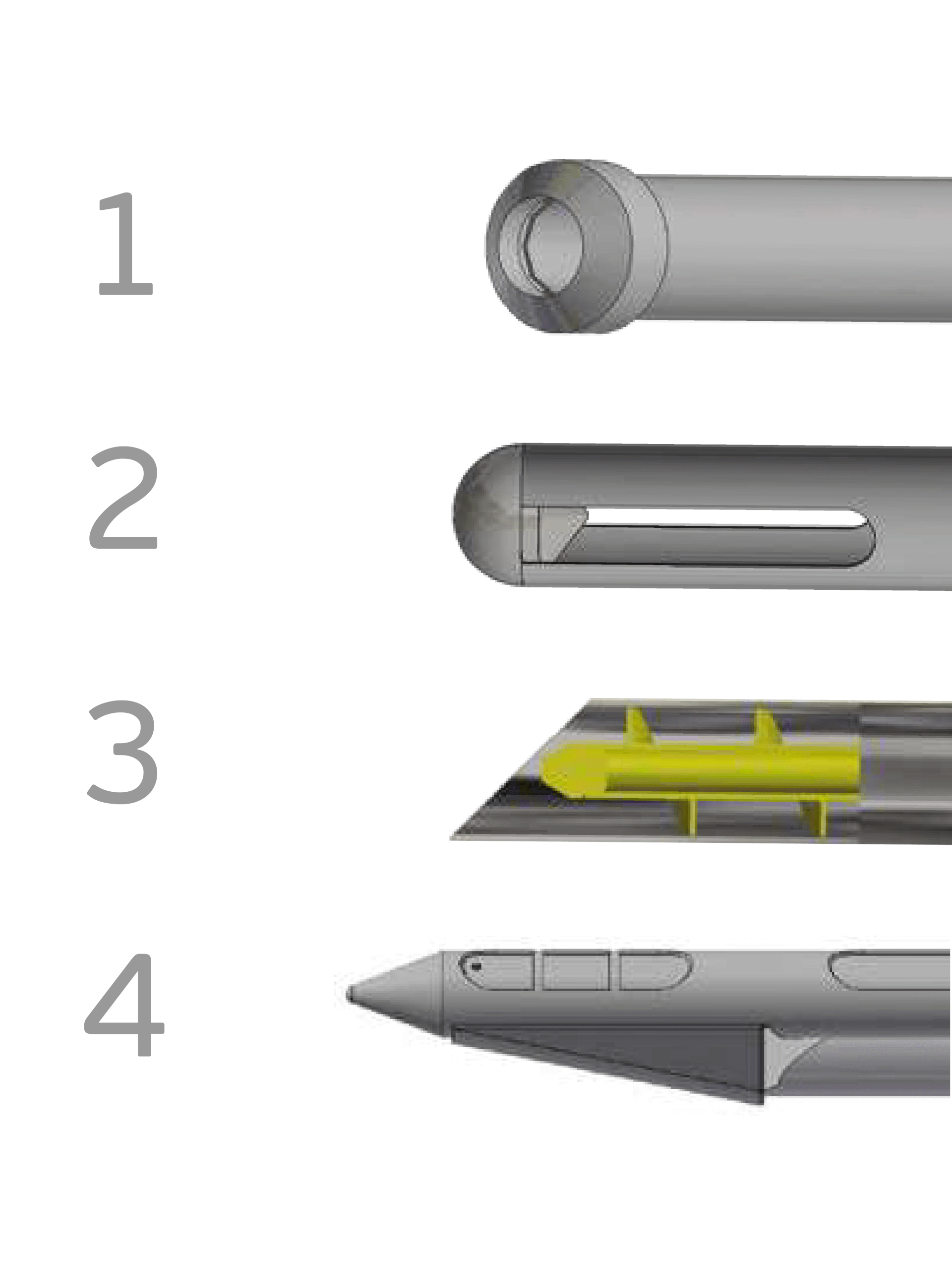

Available probe types:

  1. Single-duct probe — a versatile solution for stable and uniform sampling under standard operating conditions. Suitable for most grains and bulk materials.
  2. Double-duct probe — provides enhanced accuracy by simultaneously sampling from two flow zones. Recommended for high-capacity lines and applications with increased quality control demands.
  3. Screw probe — designed for dense, difficult-flowing, or non-uniform materials. Ensures reliable sampling even under challenging operating conditions.
  4. Slot probe — collects samples across the entire width of the material flow, ensuring maximum sample representativeness. Ideal for continuous grain flow monitoring.

Choosing the right probe allows the sampler to be perfectly matched to your process, improving analytical accuracy and reducing the influence of human error.



Why Choose Borghi

  • certified European quality;
  • stable and accurate results;
  • long service life;
  • compatibility with elevator automation systems;
  • versatility for trucks and railway wagons.

Supply, Service, and Support

Original Borghi S.p.A. automatic samplers, as well as spare parts and components, are available from stock. We provide:

  • official warranty;
  • commissioning services;
  • maintenance and servicing;
  • technical support throughout the entire service life.





Borghi SP is a reliable quality control solution for grain and oilseeds at modern agro-industrial enterprises.
