Infratec Sofia

   Grain analyzer INFRATEC SOFIA is a device for a whole grain analysis and is also an excellent portable device. This device is used on a farms, in small companies that specializes in working with grain and at cereal reception points.

RELIABILITY OF THE ANALYZER

    Infratec Sofia is a reliable, easy-to-use, accurate grain analyzer. This device helps agrarians to decide on time of harvesting as well as the price of grain. It should be noted that the analysis is easy to perform and you will get the result in three minutes. This device is portable and it is powered by 220 V AC or 12 V battery. This analyzer is able to work under harsh conditions with a high level of dust and humidity. It should be noted that for analysis you do not need to perform grinding or other sample preparation.

анализатор INFRATEC SOFIA

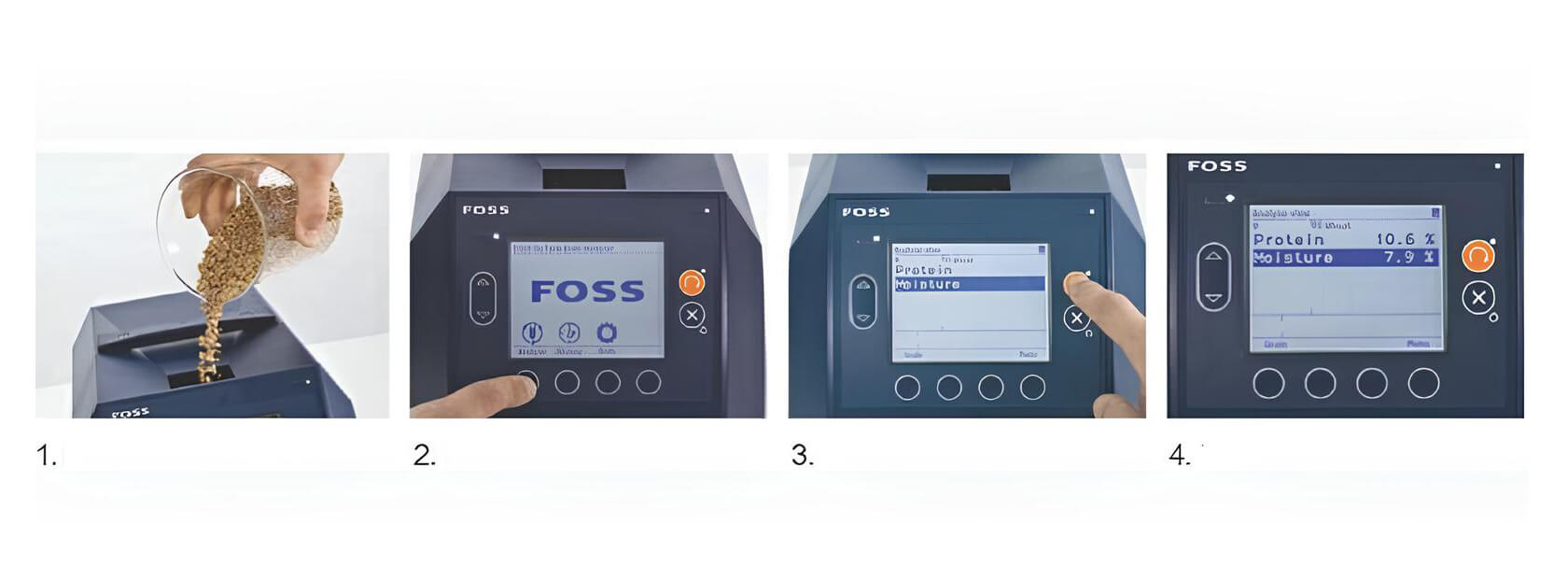

  1. Fill in the sample;
  2. Select grain type;
  3. Press start;
  4. Results are displayed in a few minutes.



    Nowadays there are many calibrations for protein and moisture in barley and wheat. It should be noted that the calibrations of the INFRATEC SOFIA fully corresponds to the INFRATEC 1241 calibrations, which is the official gold standard for estimating the value of grain products in most countries of the world as well as on the territory of Ukraine.



CALIBRATIONS

Product Parameter
Wheat Protein, moisture
Barley Protein, moisture
Durum wheat Protein, moisture
Rapeseed Oil, moisture
Triticale Moisture
Rye Moisture
Oats Moisture
Soybeans Protein, oil, moisture
Corn Protein, oil, moisture, starch



ADVANTAGES OF THE INFRATEC SOFIA

  • reliability and accuracy of the grain analysis;
  • full correspondence of the results with the INFRATEC 1241, that is very popular on the territory of Ukraine;
  • rapid and easy-to-use device that provides you with the result in around three minutes;
  • no sample preparation required;
  • results are stored on a removable memory card;
  • unique web-based update system, which ensures the accuracy of the device;
  • the device is supplied with download calibrations for protein and moisture in barley and wheat.



SYSTEM DESCRIPTION

    INFRATEC SOFIA is a whole grain express analyzer based on diode matrix technology. This device can be operated remotely and updated via the Internet. The device will notify you when updates are available for download.



TECHNICAL SPECIFICATIONS
Analysis time: approximately 3 minutes for 10 sub-samples
Self-test: approximately 7-10 minutes
Amount of sample: Up to 400 ml
Measurement mode: Transmittance
Wavelength range: 850 – 1050 nm
Detector: Silicon Linear Array
Software: Mosaic



INSTALLATION REQUIREMENTS
Voltage supply: 100-240 V AC, frequency 50-60 Hz, Class 1, protective earth (FOSS offers adapter No.60024086 AC or 12 V DC No.60024388)
Power consumption: 0.14 A (230 V), 2.50 A (12 V)
Ambient temperature: 0-45 °C
Storage temperature: -20 °C to 70 °C
Ambient humidity: < 93% RH, cyclic up to 100% RH
Weight: 9 kg
Dimensions: 390 х 255 х 295 mm
Operating conditions: Laboratory, vehicles, in the field
