Mechanical side truck dumper UNIVERSAL

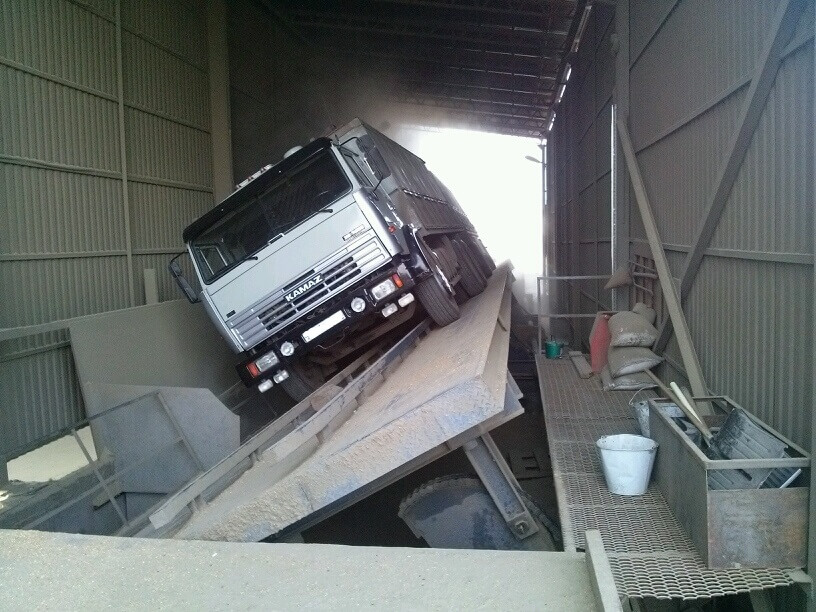

  Single way truck dumper IHUANA is used to unload grain products from different vehicles and truck with trailers. In addition, using this dumper it is possible to unload road trains, which have one or more trailers without detachment (by opening sideboard).



MAIN ADVANTAGES

This truck dumper has several advantages in comparison with existing analogues:

  • calculations of the platform strength and other assembling units are performed using the SCAD office and are confirmed by certification and acceptance tests;
  • more robust design of platforms and knocks of tipping;
  • it should be noted that one drive is installed, no matter what length of the platform is;
  • the innovative design of the drive unit is equipped with a geared motor, which is manufactured in Italy or Germany and has an integrated braking mechanisms. This feature makes it possible to ensure a smooth lift of the car unloading platform, without jerks;
  • relatively low energy intensity;
  • in order to eliminate production inaccuracies, installation errors and thermal deformations, the drive shafts are mounted on self-aligning bearings that is manufactured in Japan. This feature increases the reliability of products and increases the life of these bearings twice as much;
  • warranty period is longer in comparison with other devices;
  • less price in comparison with other devices.



TECHNICAL CHARACTERISTICS OF THE TRUCK DUMPER UNIVERSAL

Parameters Model – 9 Model – 14 Model – 16 Model – 18 Model – 18/1 Model – 20 Model – 20/1 Model – 22 Model – 22/1 Model – 24 Model – 24/1
Length of the platform, m 9 14 16 18 18 20 20 22 22 24 24
Weight-carrying capacity, t 60 60 60 60 80 80 100 80 100 100 120
Platform lift time, sec 40 40 40 40 40 40 40 40 40 40 40
Platform drop time, sec 32 32 32 32 32 32 32 32 32 32 32
Geared motor capacity, kW 4 4 4 4 5.5 5.5 5.5 5.5 5.5 7.5 9.2
